THE AGROLUX EVO GRUBBER 3.0
SUB-SOILER

New release!

The latest innovation in agricultural technology

The AGROLUX EVO Grubber

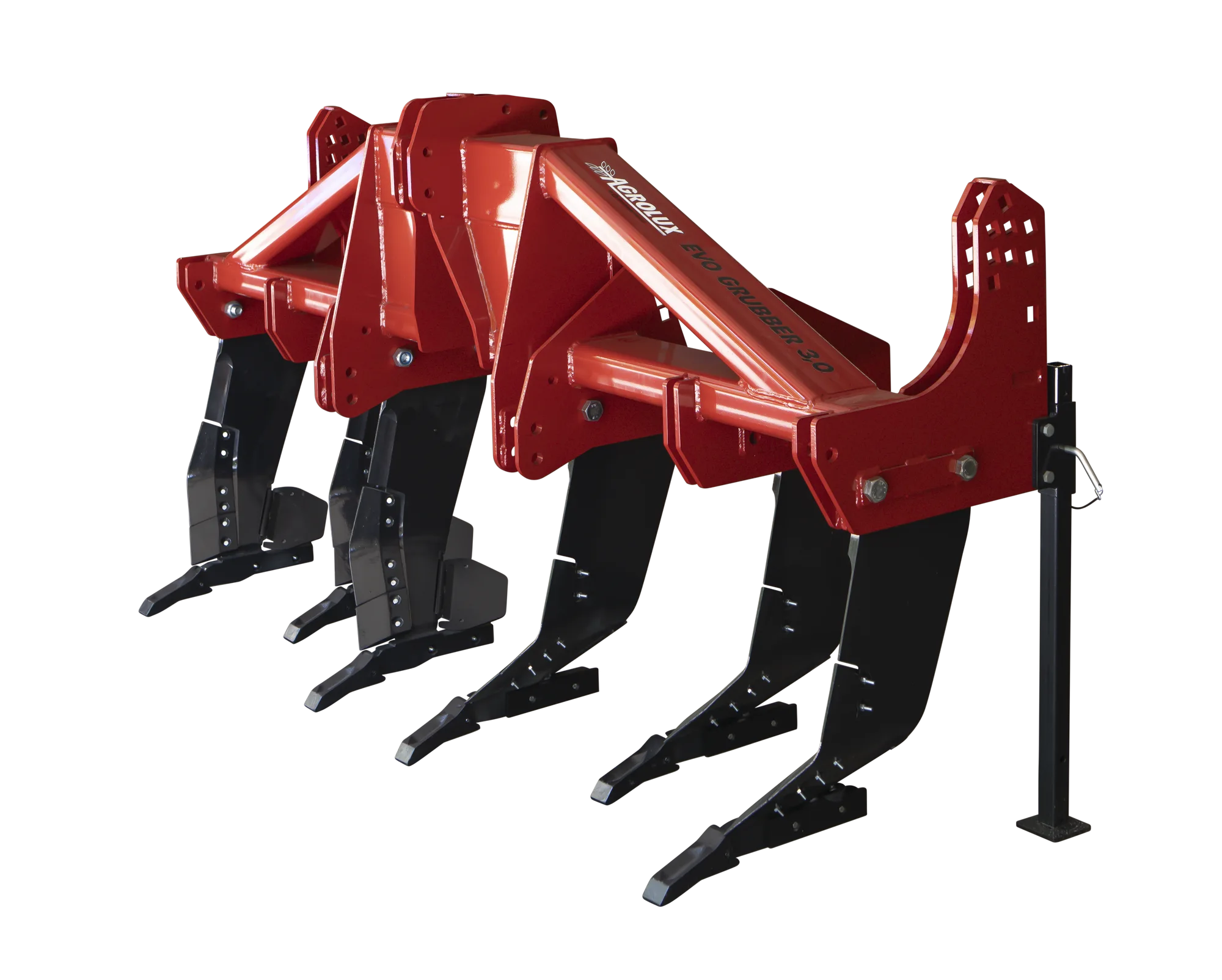

THE AGROLUX EVO GRUBBER sub-soiler consists of a heavy-duty frame with 6 specially angled tines. The EVO Grubber has a maximum working width of 3 m and a working depth of 50 cm. The depth can be controlled by a rear crumbler type roller or doublecutter roller. The EVO Grubber distinguishes itself by lifting and loosening the soil across the full working width.

Contrary to the ordinary sub-soilers, the Agrolux EVO Grubber exploits the full working width when loosening the soil. In addition the design makes it easy to combine the sub-soiler with a power harrow, rotavator or (disc) cultivator. Which means that it is possible to work the stubble into the soil as well as subsoiling in one pass.

EVO GRUBBER 3.0 SUB-SOILER

5 main arguments

2nd and 5th tine are moveable backwards

for handling a larger amount of crop residues.

Adjustable plates at the back of the tine

Easy to adjust for changing the intensity of working.

Low draft requirement

According to several tests the EVO Grubber is one of the lowest in fuel consumption combined with limited wheelslip.

Breaking soil in natural lines

The 6 tines lift the soil and creates an open structure of the soil to improve watermanagement and structure of the soil.

Strong frame with welded plates

Small plates with extra space to release residues.

Maximum Efficiency in a Single Pass

Mounted short on the tractor, the Agrolux EVO Grubber 3.0 is the ideal machine to combine with other implements, for multiple operations in 1 pass.

5 main arguments

  • Strong frame with welded plates: small plates with extra space to release residues.

  • Breaking soil in natural lines: the 6 tines lift the soil and creates an open structure of the soil to improve watermanagement and structure of the soil.

  • Low draft requirement: according to several tests the EVO Grubber is one of the lowest in fuel consumption combined with limited wheelslip.

  • Adjustable plates at the back of the tine: easy to adjust for changing the intensity of working.

  • 2nd and 5th tine are moveable backwards for handling a larger amount of crop residues.

Heavy duty with welded plates

Small plates with extra space to release residues.

New feature

2nd and 5th tine are moveable backwards for handling a larger amount of crop residues.

Low draft requirement

Adjustable plates at the back of the tine: easy to adjust for changing the intensity of working

V-Shaped
Precision

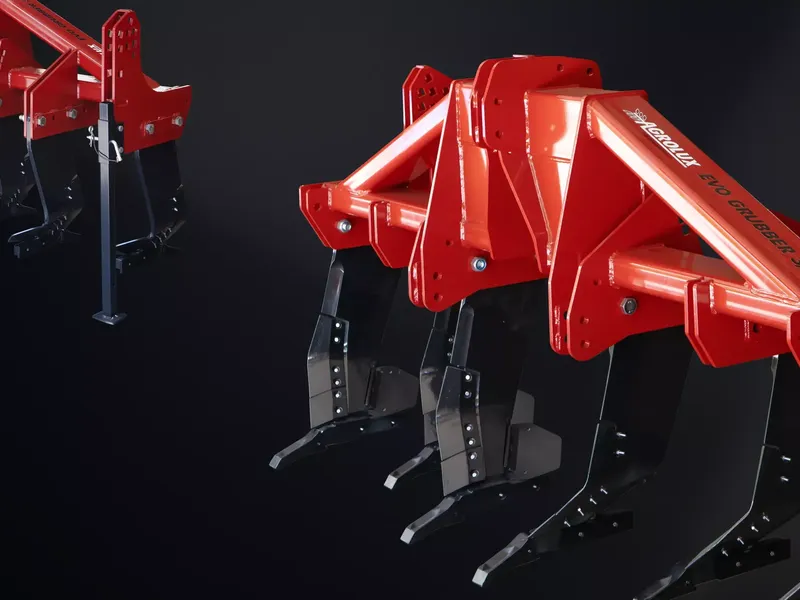

The six tines of the Agrolux EVO Grubber 3.0 are mounted in V-shape for easy releasing residues.

Technical Specifications

Working width

3.00 m

Transport width

3.00 m

Nmb. of legs

6

Max. working depth

0.50 m

Weight

995 kg

Power demand

110 - 200 hp

Accessories

  • 3-point linkage for PTO implement
  • Cage roller 550 mm
  • Disc-cutter roller
  • Shearbolt kit

Remarks

  • The EVO Grubber is stone protected with shear bolt (optional)
  • This makes the EVO Grubber most useful in soil with few fixed stones.
